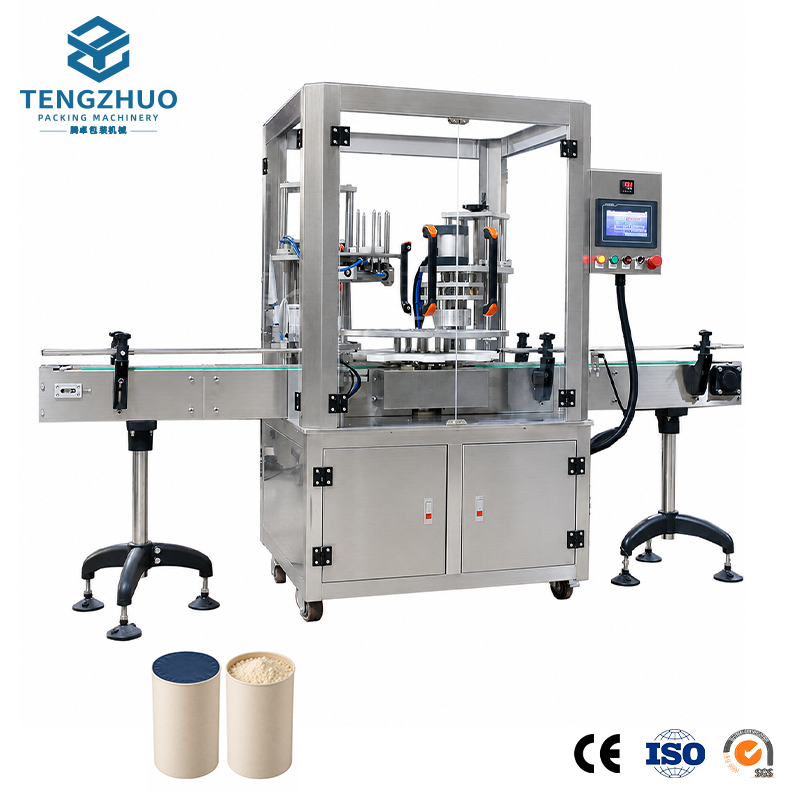

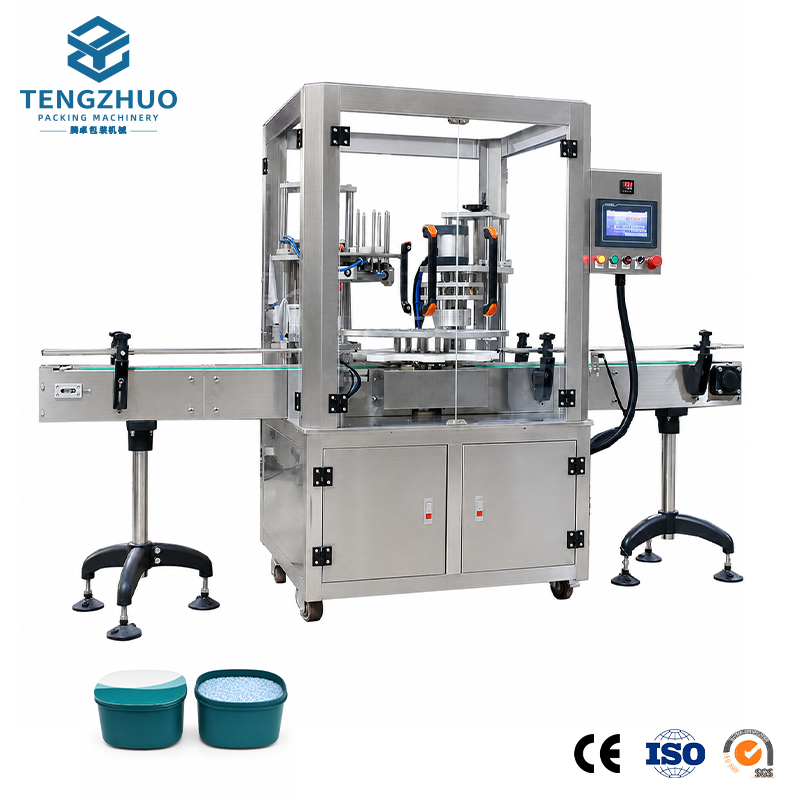

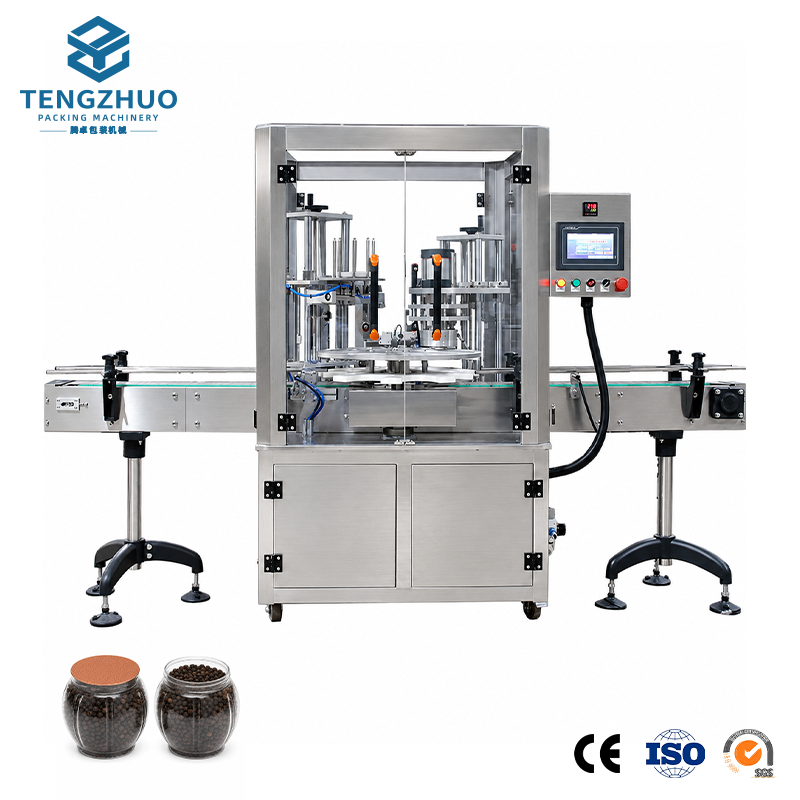

Rotary Single-head Premade Sheet Film Heat Sealing Machine (with Acrylic Safety Door)
This rotary cup foil heat sealing machine is a fully automatic stainless steel unit for sealing paste, granule and powder cups. It completes cup feeding, film sealing and product output automatically with stable operation.
Punti salienti
- Integrated automatic production workflow, it carries out auto cup dropping, film releasing, heat sealing and finished product conveying continuously without manual intervention.
- Stainless steel main structure, hygienic and easy to clean, compatible with plastic, paper and aluminium-plastic cups for diverse packaging needs.
- Reliable electric & pneumatic control system, featuring low failure rate, stable running performance and long service life.
Specifiche tecniche
| Categoria | Parametri |
|---|---|
| Model | PFBJ-1P |
| Packing speed | 20 cups/min |
| Suitable for cup Diameter | Dia 50-130mm(can be customized） (Need to change Star wheel+heat sealing+premade foil storage shelf mold if Diameter is different) |
| Suitable for cup Height | 40-200mm(can be customized） |
| Power supply | 220V/380V |
| Power | 2KW |
| Air source | 0.5MPa-0.75 MPa |
| Air consumption | 0.45m3/min |
Dettagli approfonditi
Core Advantages
1. Integrated Automatic Production
Integrates cup feeding, film laying, heat sealing and discharging. Synchronized control reduces manual work and ensures consistent sealing quality.
2. Sanitary & Multi-purpose Structure
Stainless steel frame with aluminum molds, easy to clean. Suitable for paste, powder, granules and various cup types.

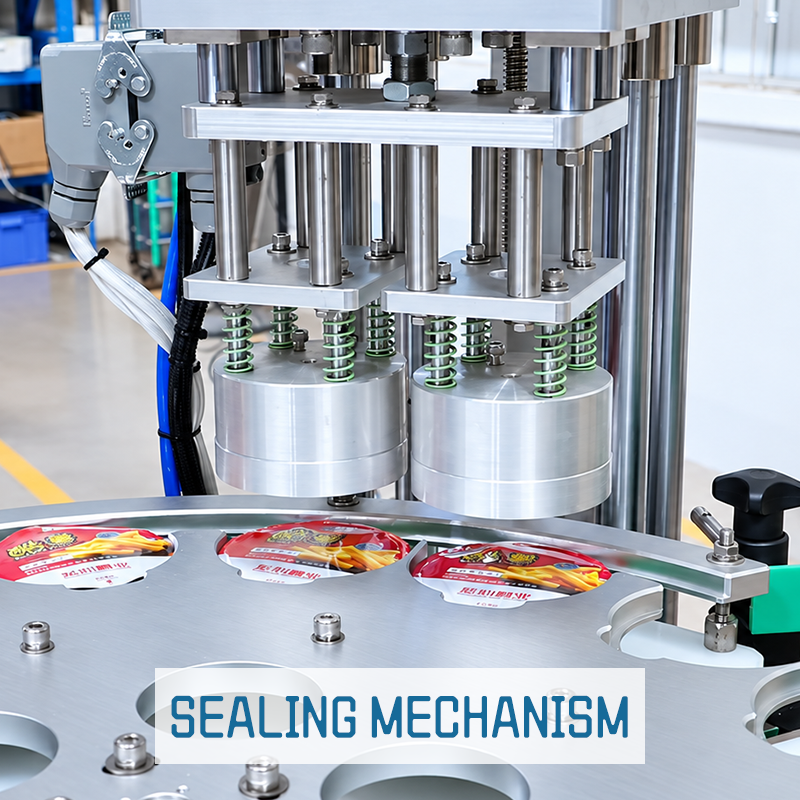

3. Precise Heat Sealing Process
Constant temperature heating system for aluminum/PE film. Reliable sealing to avoid leakage and wrinkling.
4. Robust Control System
Famous-brand electric & pneumatic components with safety protection. Stable rotary transfer, low failure rate and long service life.
